La prusiana T 12 · DB BR 74.4-13
DRG / DB BR 74.4-13
redaccion_LCTM@
Abril 2010

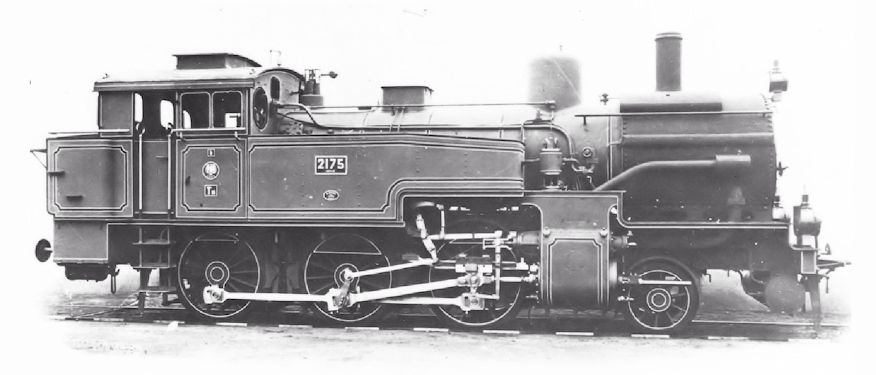

Foto © .

The Prussian Class T 12 is an early, German, passenger train, tank locomotive built for the Prussian state railways in large numbers. These locomotives were superheated variants of the T 11. History Although the T 12 first appeared as early as 1902 in an experimental guise, series production did not start until 1905. Besides the Prussian state railways, the engine was also procured by the Imperial Railways in Alsace-Lorraine (25 units), the Lübeck-Büchen Railway and the Halberstadt-Blankenburg Railway. The main sphere of operations for the T 12 was the Berlin area, where it worked the city network, ring railway and suburban lines as a predecessor of electric S-Bahn traction. The engines had to be capable of rapid acceleration when in charge of compartment coach trains in order to achieve acceptable journey times, due to the short distances between stations on some routes. The T 12 was therefore a very powerful locomotive with strong acceleration in both running directions. In 1921 a follow-on order of 40 locomotives was built by Borsig, because the fleet was not large enough. After the electrification of much of the S-Bahn network between 1924 and 1929 the locomotives were switched to normal passenger and goods train services and shunting. In 1925 the Reichsbahn took over 899 examples as their DRG Class 74.4-13 with numbers 74 401 to 74 1300 (74 544 was not used). The locomotive, for which this number was intended, had to be given to the Belgian state railways. Locomotives 74 784–786 and 74 1254 originally came from the Imperial Railways in Alsace-Lorraine. Ten engines, with numbers 74 1301 to 74 1310, were taken over from the Saarbahn. Another eleven units, with numbers 74 1311 to 74 1321 were acquired from the Lübeck-Büchen Railway in 1938, where they had had running numbers 132 to 142. Five of them were streamlined like the 1'B1' streamliners.[1] The streamlining was removed again in 1948; these engines could still be recognised from their tapered coal tanks. Locomotive 74 498 remained in Austria after the end of the Second World War where the ÖBB classed it as 674.498 in its tractive fleet. The engine was later employed in Vienna, was derailed on 3 July 1954 and then scrapped (official retirement date: 23 May 1955). In 1950 the East German Deutsche Reichsbahn took over four of the locomotives bought by the Halberstadt-Blankenburg Railway, numbering them 74 6776–6779. The ex-Prussian Class T 12's were retired by both West and East German administrations by 1968. Number 74 1192 (see photograph) has been preserved, along with no. 74 1230 and one of the PKP Class OKi2 in Poland (formerly 74 1234),

Características técnicas.
NúmerosDRG 74 401–543, 545–1321 Unidades producidas1014
FabricantesUnion, Borsig Años de fabricación1902–1921
Año de retirada1968 Disposición de ejes2-6-0T - 1′C h2t
TipoPt 34.17 Longitud entre topes11800 mm / 12100 mm
Peso de servicio65,90 t Peso de adherencia50,50 t
Peso por eje17,36 t Velocidad máxima80 km/h
Potencia640–669 kW Diámetro de ruedas motrices1500 mm
Diámetro ruedas guía1000 mm Diámetro de los cilindros540 mm
Recorrido del pistón630 mm Sobrepresión de caldera12 bares
Área de parrilla1,69 m2 Área de sobrecalentamiento33,40 m2
Área de evaporación105,37 m2
Los modelos de Märklin.

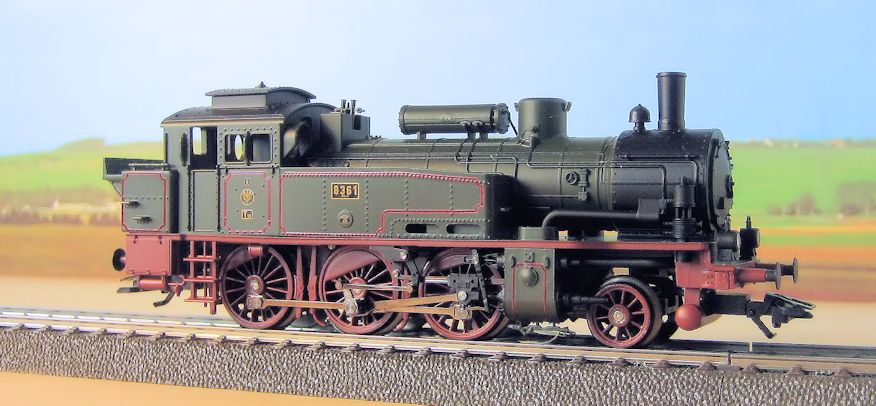

Foto © Gerardo Rivero.

Tabla de modelos.
Märklin.
Tabla de modelos.
Primeros modelos.
Código Operador Número Época Control Motor Librea Años Detalles
3095.1DB74 1070IIIMecánicoSFCMnegro1968-1968-
3095.2DB74 701
3095.3DB
3095.4
3095.5
3095.1034
3095DB74 701IIIMecánicoSFCMnegro1969-2003-
3101SNCB96 002IIIMecánicoSFCMverde/negro1978-1978-
3105ÖBB674.498IIIMecánicoSFCMnegro1984-1984-
3103KPEV7896IMecánicoSFCMverde/negro1994-1994-
29175 (1)-34IIIDeltaSFCMazul/negro1998-2000-
29176-34IIIDeltaSFCMazul/negro1998-2000110V
29175 (2)-34IIIDeltaSFCMazul/negro1999-1999"Märklin 1859-1999"
29991DB74 701IIIDeltaSFCMnegro2001-2001"Überraschungsstartset"
30951DB74 749IIIDeltaSFCMnegro2003-2003-
36740DB74 749IIIDeltaSFCMnegro2003-2003-
Nuevos modelos.
